Dipole 27-28 MHz

Product detailed description

Dipole for 27-28 MHz band.

New balun design 2025

- more massive boxes, thicker walls
- brass bushings for lid screws
- Uniform box design for all models
- new power limits
- wider choice of mechanical designs
- choice of pressure valve design
- choice of Amphenol N connector
- MINI version also available in clamp mount version
- overall precision design

Lightweight version suitable for fixed mounting, laminated telescopes, portable.
Suitable for use with 100 W transceiver.

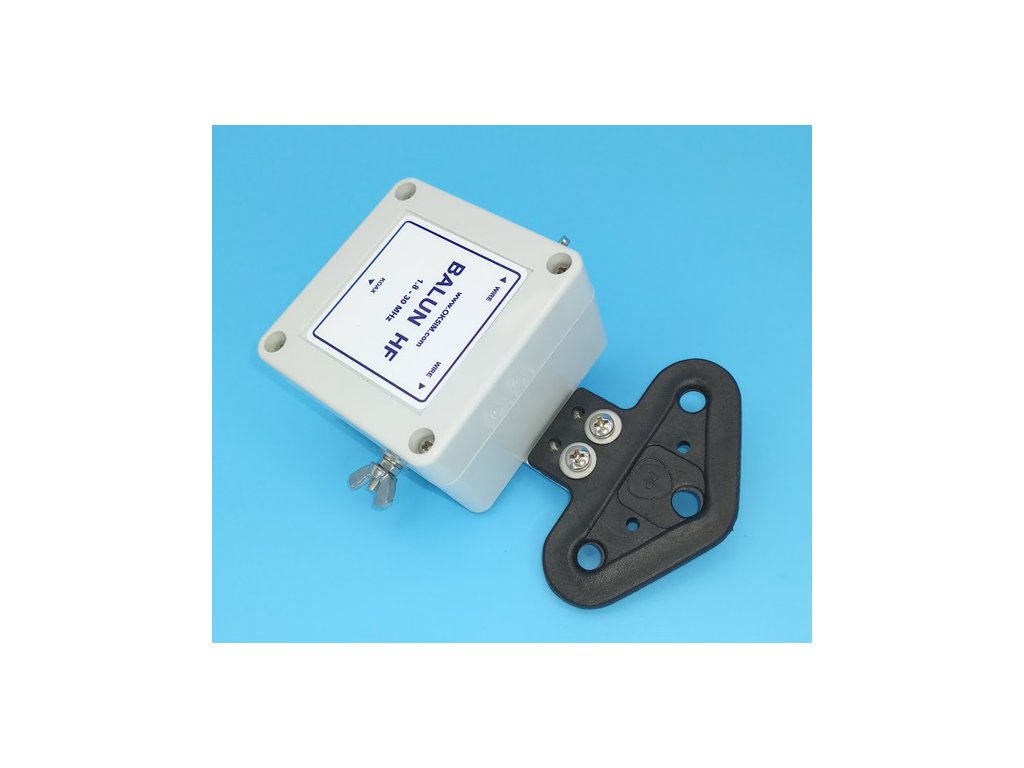

Mounting for hanging behind the balun.
Can only be hung by the ends of the arms and the balun "in the air" with the CU-HS cable variant.

Specifications:
- 27-28 MHz band.

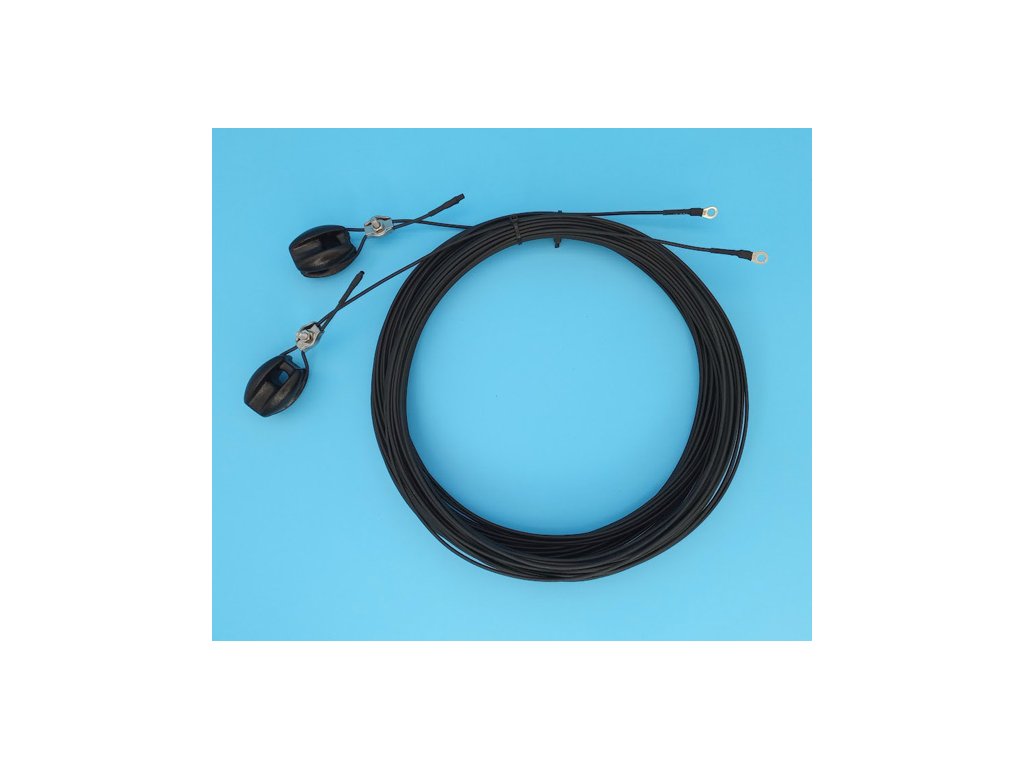

- length of arms approx. 2x2,85 m, tuning by length at the mounting point
- antenna wire according to the selected variant
- balun 1:1
- power load 300 W max (SSB 300 W / CW 150 W / digi 70 W)
- weight according to selected antenna cable
- attachment for hanging
- the box is IP-65 rated
- box size 75x75x45 mm
- PL connector (UHF), on request it can be fitted with Amphenol N connector

The balun box can be equipped with a pressure valve at extra cost.
The function of the pressure valve - if the instrument box is exposed to temperature changes - e.g. the difference between day and night temperatures or if heat is generated in the box during operation and the box cools down after operation - pressure changes and water vapour condensation occur in the sealed box.
In some cases, a vacuum may even be created, which can cause dust and moisture to enter.
Installing a valve with a pressure balancing function is a very simple way to provide ventilation and at the same time prevent vapour condensation and dust from entering the enclosure.
If you are interested in installing a pressure equalizing valve, add the valve offered above in the related products to your cart. The extra charge is the price of the valve.

Attach the coaxial cable to the balun so that it does not hang by its own weight on the connector.
