Dipole 3,5 MHz 1kW mk2

Product detailed description

Dipole for 3,5 MHz band.

New balun design 2025

- more massive boxes, thicker walls
- brass bushings for lid screws
- Uniform box design for all models
- new power limits
- wider choice of mechanical designs
- choice of pressure valve design
- choice of Amphenol N connector
- MINI version also available in clamp mount version
- overall precision design

Mounting on clamp mount.

Technical data:
- 3,5 MHz band
- length of arms approx. 2x21 m, tuning by length at the mounting point
- antenna cable according to the selected variant
- balun 1:1
- power load up to 1 kW PEP (SSB 1 kW / CW 500 W / DIGI 300 W)
- power compensated for use in contests
- large ferrite toroid 1x FT-240
- mechanical design for caliper mounting
- PL input connector (UHF)
- antenna radiators are connected to M4 screws and secured with wing nut
- fasteners are stainless steel
- box dimensions 105x105x60 mm
- weight according to the selected antenna cable
- attachment for hanging
- the box has IP-65 protection

The balun box can be equipped with a pressure valve at extra cost.
The function of the pressure valve - if the instrument box is exposed to temperature changes - e.g. the difference between day and night temperatures or if heat is generated in the box during operation and the box cools down after operation - pressure changes and water vapour condensation occur in the sealed box.
In some cases, a vacuum may even be created, which can cause dust and moisture to enter.
Installing a valve with a pressure balancing function is a very simple way to provide ventilation and at the same time prevent vapour condensation and dust from entering the enclosure.
If you are interested in installing a pressure equalizing valve, add the valve offered above in the related products to your cart. The extra charge is the price of the valve.

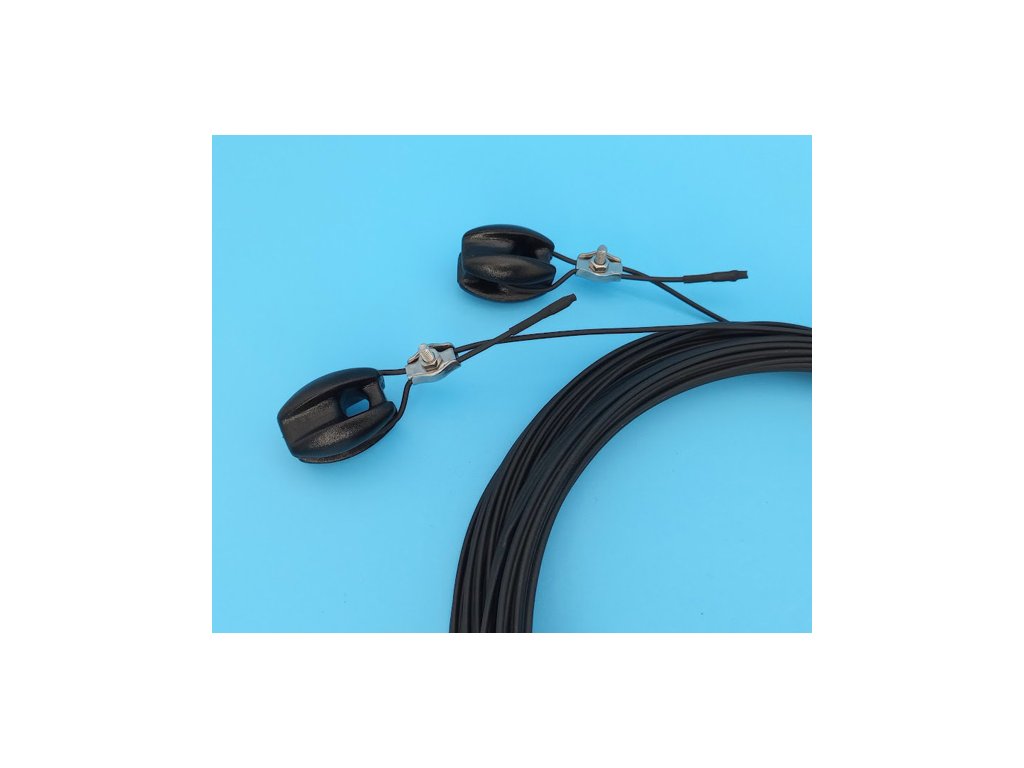

Example of attaching the antenna wire to the mk2 balun
