Doublet 2x17m 300

Product detailed description

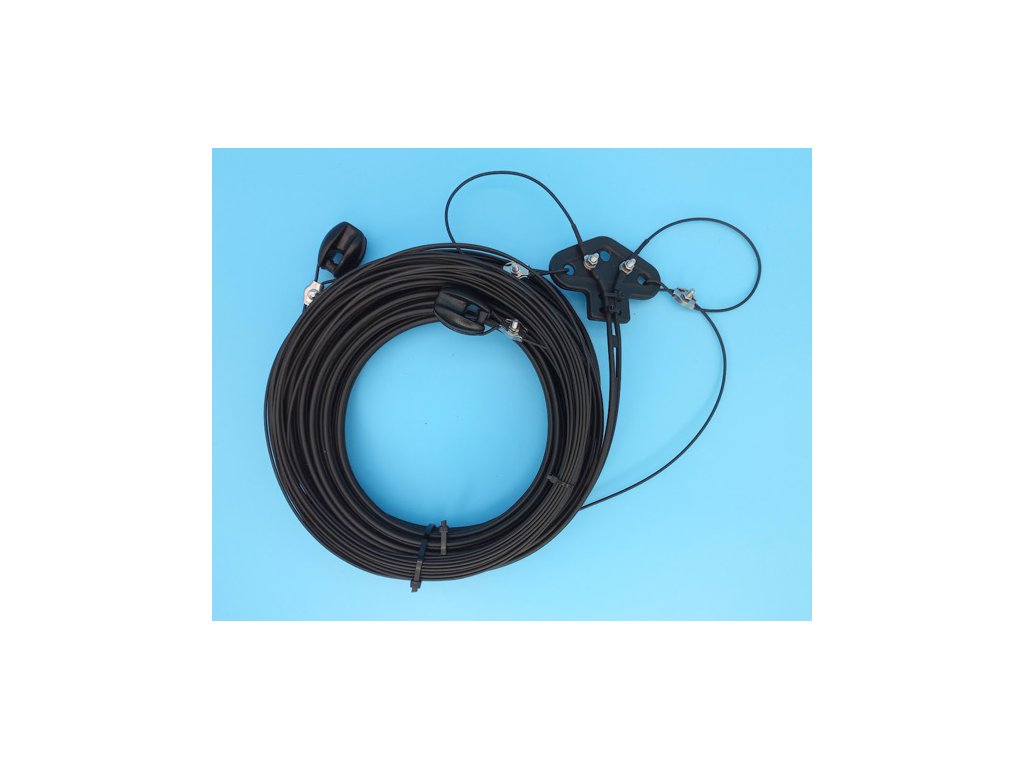

Doublet 2x17 m 300 ohm double line

Mounting for hanging by the centre piece or by the ends of the arms.
(not recommended to hang by the ends of the arms for the CU-PE variant)

Specifications:
- 3.5-28 MHz bands
- length of arms 2x17 m
- tuning by antenna tuner
- antenna cable according to variant - CU-PVC, CU-PE, CU-HD
- 300 Ohm double line
- double line length 10 m
- if a coaxial cable will be connected between the tuner and the double line, it is recommended to connect a 1:1 balun between the double line and the coax
- weight 1.1 kg (with CU-PVC cable)
- attachment for hanging

Can be manufactured with any length of twin line on request.
Increase the length of the twin line - put the desired amount of increase meters of 300 Ohm twin line in the cart.

Example of connecting a 450 Ohm transmitting double line to a MINI LL balun - transition between double line and coaxial cable.
The balun is not included in the antenna, it is ordered separately.
