END FED 4B TRAVEL
Code: 660Related products
Product detailed description
TRAVEL series - small, lightweight design for travel
END FED (EFHW) antenna, MINI version.
Lightweight version suitable for travel, but also for permanent installation on fiberglass telescopes and portable devices.
Suitable for use with a 100 W transceiver.
New transformer connection and large Fair-rite cylindrical ferrite.
Mounting by hanging behind the transformer.
We recommend hanging the transformer on a rope, mounting it with plastic tape or securing it with rubber tape. We do not recommend hanging the transformer on the antenna wire and putting weight on it.
The antenna wire is CU-UL, selected for its weight and strength.
The length of the radiator and the method of installation affect the radiation pattern on individual bands.
Recommendations for the ideal radiation pattern:
42 m - 3.5-7-14-21-28 MHz (14 MHz and above already has more lobes)
20.5 m - 7-14-21-28 MHz
10 m - 14-28 MHz
For travel and vacation, we recommend a 20.5 m radiator and horizontal mounting in a straight line, INV. V or INV. L using a laminate telescope.
Information on mounting and radiation can be found below.
Technical data:
- bands 3.5-28 MHz depending on the selected radiator length
- radiator length according to the selected variant
- CU-UL antenna wire
- radiator length 20,5 m
- END FED TRAVEL transformer
- compensation capacity 100 pF / 10 kV
- input impedance 50 ohms
- power load up to 300 W PEP max (SSB 300 W / CW 200 W / digi 100 W)
- mechanical design for suspension by means of a rope
- PL input connector (UHF)
- antenna radiators are connected with M3 screws and secured with nuts
- connecting material is stainless steel
- box has IP-65 protection
- box dimensions 75x75x45 mm
- weight
Examples of recommended mounting options and radiation patterns (radiator 20.5 m)
7 MHz - orange, 14 MHz, 14 MHz - green, 21 MHz - brown, 28 MHz - purple

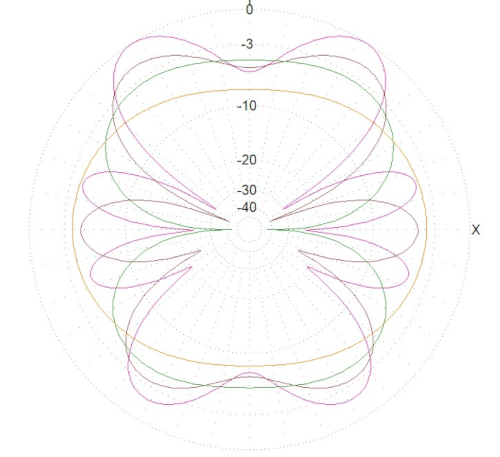

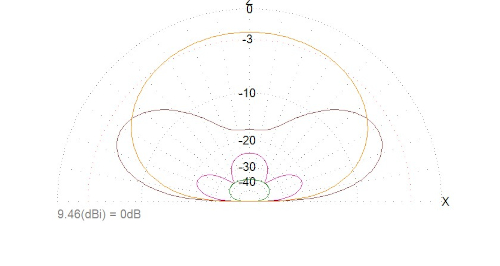

Mounting in a straight line horizontally - height above ground 7 m

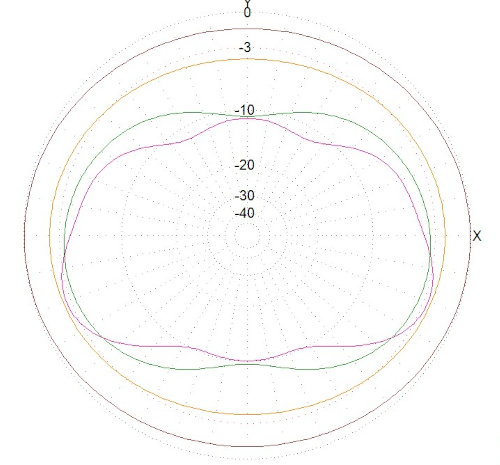

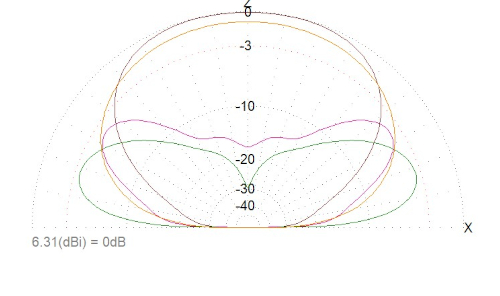

INV V installation - center of the radiator at a height of 10 m, edges 2 m above the ground

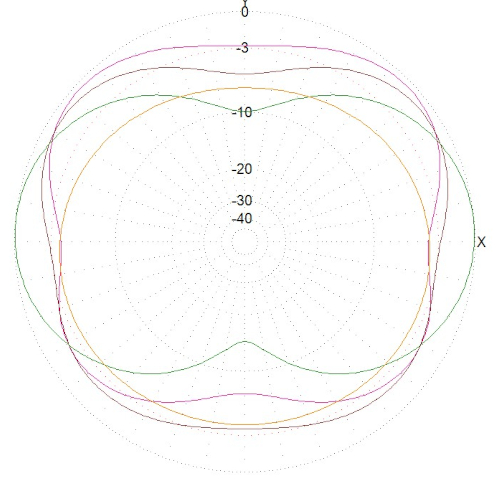

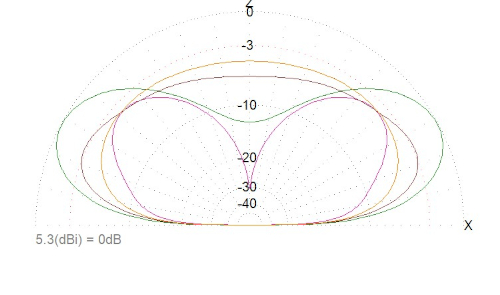

Installation of INV L - transformer in the base of a laminate telescope, radiator vertically 10 m and horizontally 10 m

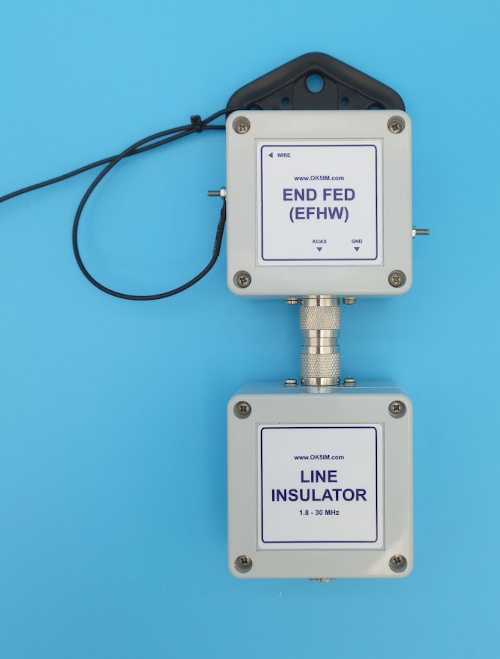

A line isolator can be easily connected as a transformer element
(line isolators can be found in related products)
