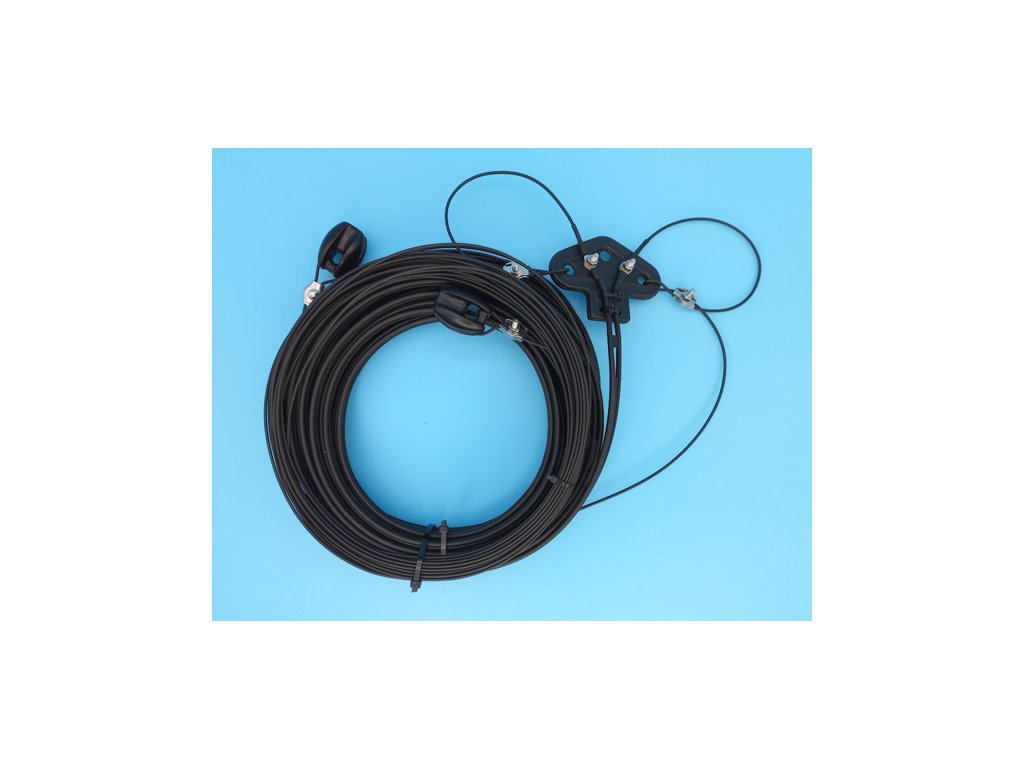

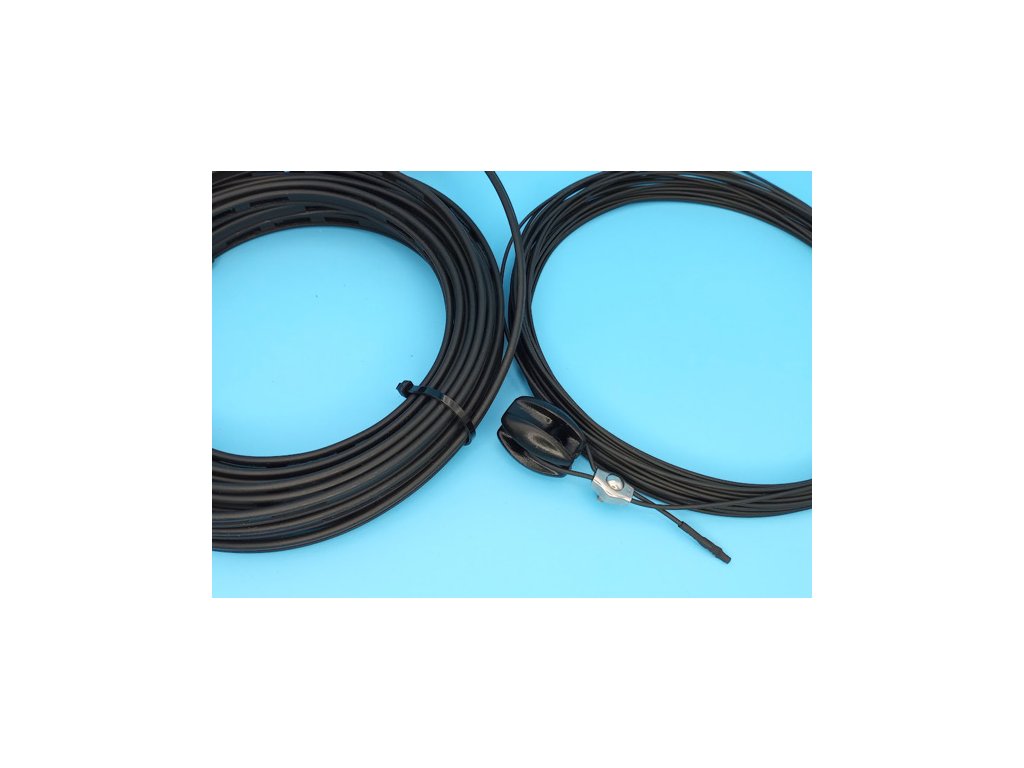

G5RV 3,5-28 300

Product detailed description

G5RV 3,5-28 MHz 300 ohm dual line.

Mounting for hanging by the centre piece or by the ends of the arms.
Not recommended for hanging by the ends of the arms on the CU-PE variant

Specifications:
- 3.5-28 MHz bands
- length of arms 2x15,5 m
- tuning by antenna tuner
- antenna cable according to variant
- 300 Ohm double line
- double line length 10 m
- if a coaxial cable will be connected between the tuner and the double line, it is recommended to connect a 1:1 balun between the double line and the coax
- weight 1.1 kg (in the version with CU-PVC cable)
- attachment for hanging

Can be manufactured with any length of twin line on request.
Increase the length of the twin line - put the desired amount of increase meters of the 450 Ohm twin line in the cart.

Example of connecting a 450 Ohm transmitting double line to a MINI LL balun - transition between double line and coaxial cable.
The balun is not included in the antenna, it is ordered separately.
