Line Insulator (CMC) MINI mk2

Product detailed description

Line isolator MINI version

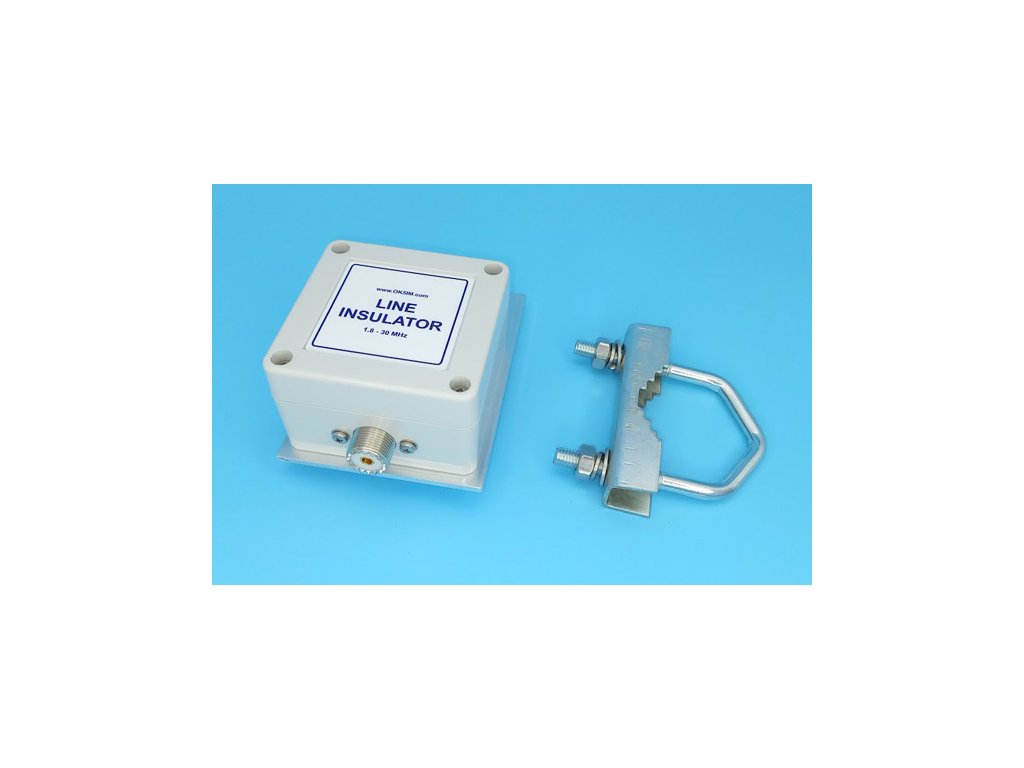

Clamp-on version.

New version 2025

- more massive boxes, thicker walls
- brass bushings for lid screws
- Uniform box design for all models
- new power limits
- wider choice of mechanical designs
- choice of pressure valve design
- choice of Amphenol N connector
- MINI version also available in a clamp mount version
- overall precision design

Suppresses sheath currents when fed by coaxial cable.
Also referred to as Common Mode Choke (CMC)
Suitable e.g. for END-FED, Windom antennas or for connection to a coaxial feeder.

Suitable for use with 100 W transceiver.

Specifications:
- Power loading 300 W PEP max (SSB 300 W / CW 150 W / digi 70 W)
- 50 Ohm winding with Teflon insulation
- impedance 50 Ohms
- connected coaxial cable via PL connectors (SO-239)
- fasteners are stainless steel
- the box is IP-65 rated
- box size 75x75x45 mm

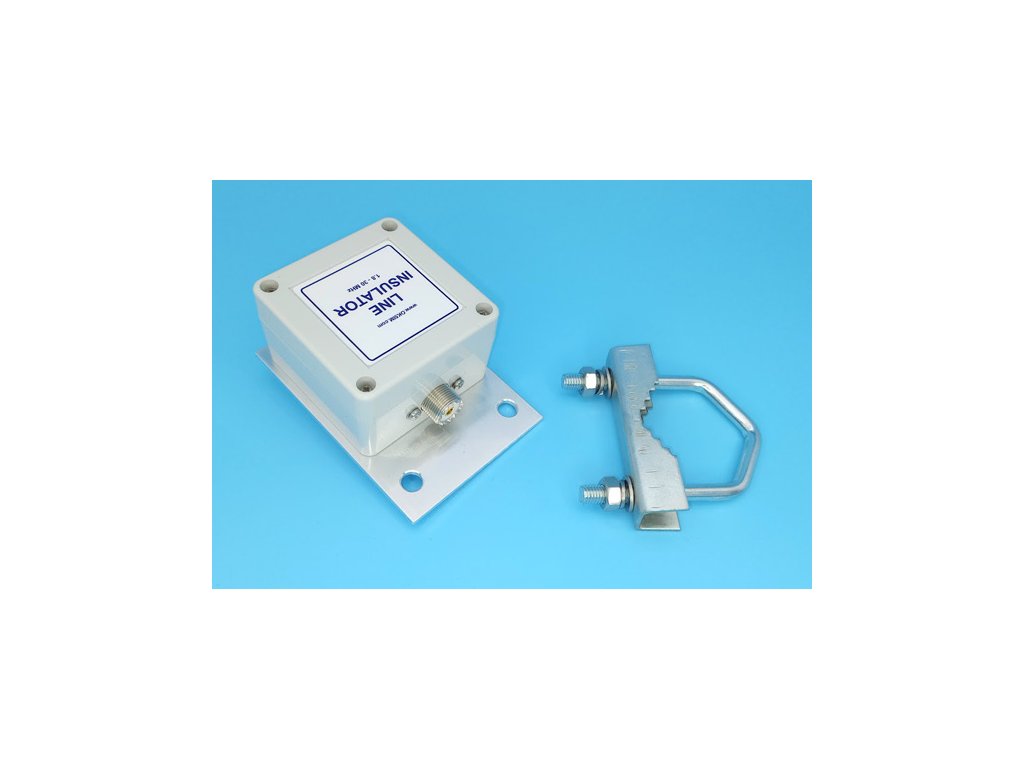

- clamp mounting option
- clamp for pipe up to 50 mm, thread M8
- weight 0,35 kg

The box can be supplemented with a pressure valve at an additional cost.
Function of the pressure valve - if the instrument box is exposed to temperature changes - e.g. the difference between day and night temperatures or if heat is generated in the box during operation and the box cools down after operation - pressure changes and condensation of water vapour occur in the sealed box.
In some cases, a vacuum may even be created, which can cause dust and moisture to enter.
Installing a pressure equalizing valve is a very simple way to provide ventilation while preventing vapor condensation and dust from entering the enclosure.
If you are interested in installing a pressure valve, add the valve offered in the Accessories category to your cart. The extra charge is the price of the valve.
