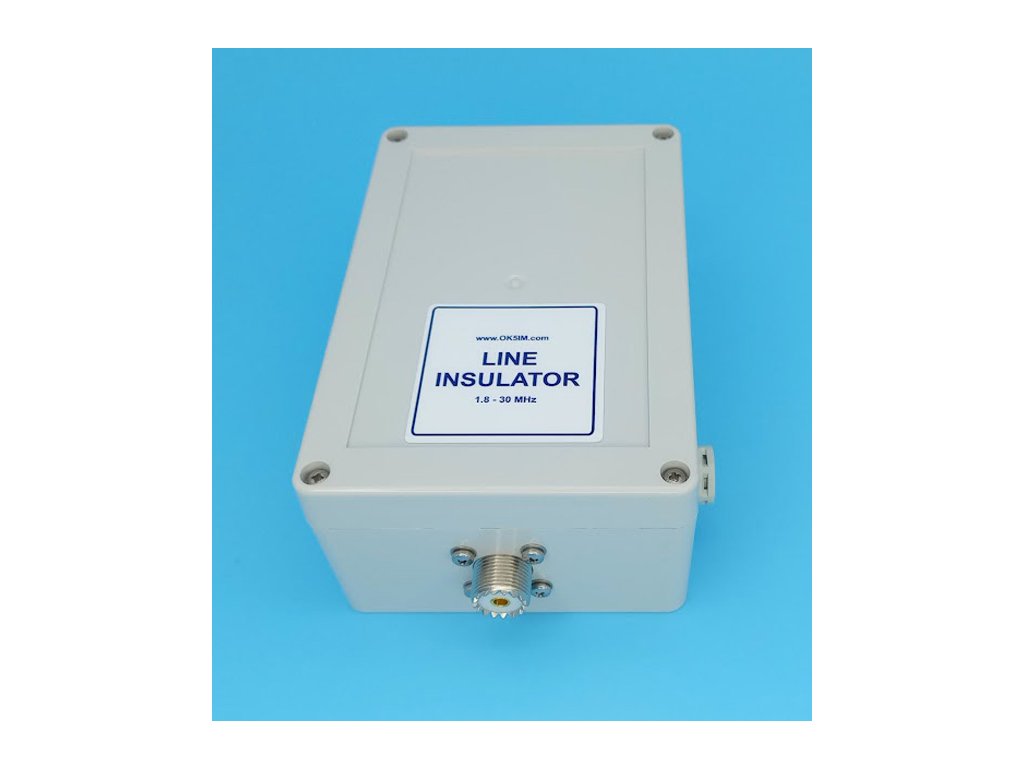

Line Insulator (CMC) QRO 2 kW

Product detailed description

Line insulator (CMC filter) 2 kW

New design 2025

- more massive boxes, thicker walls
- brass bushings for lid screws
- Uniform box design for all models
- New power limits
- wider choice of mechanical designs
- choice of pressure valve design
- choice of Amphenol N connector
- MINI version also available in clamp mount version
- overall precision design

Suppresses sheath currents when fed by coaxial cable.

Also referred to as Common Mode Choke.

Suitable e.g. for END-FED, Windom antennas or for connection to a coaxial feeder.

Technical data:
- Power loading 2 kW PEP (SSB 2 kW / CW 1 kW / DIGI 600 W)
- Teflon insulated coaxial winding
- power compensated for use in contests
- large ferrite toroid 2x FT-240
- impedance 50 Ohms
- connected coaxial cable via PL connectors (UHF), N connectors Amphemol on request
- the connecting material is stainless steel
- box size 150x100x75 mm
- the box has IP-65 protection
- the box is equipped with a pressure valve
- weight 0,5 kg

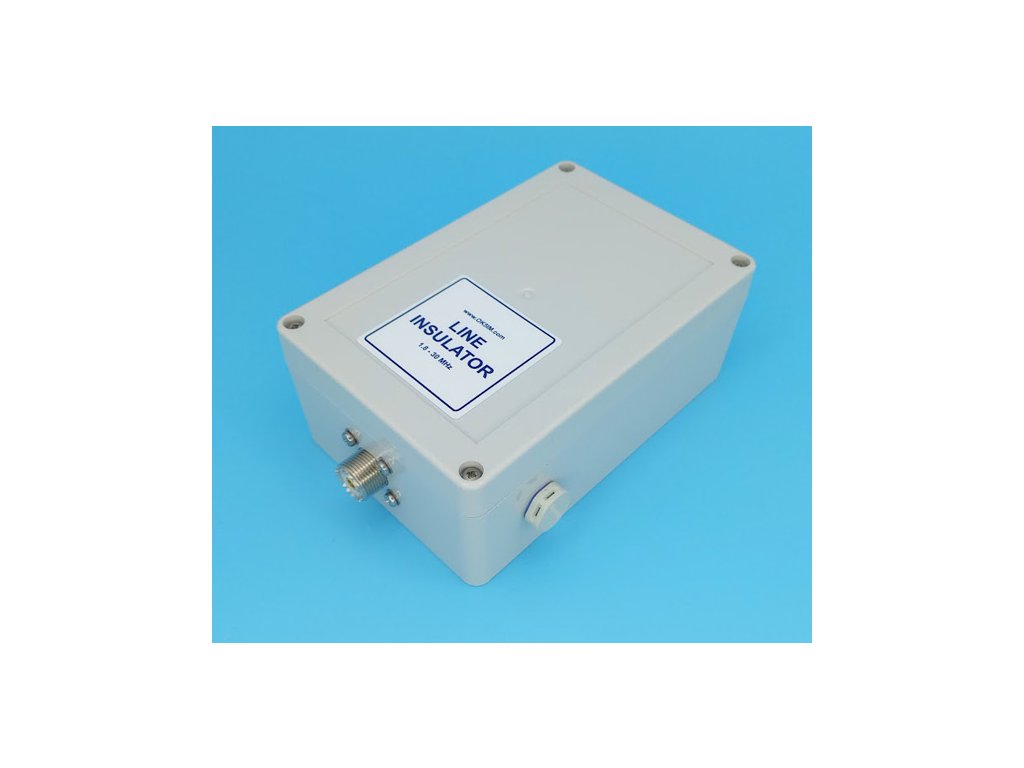

The box is equipped with a pressure valve.
The function of the pressure valve - if the instrument box is exposed to temperature changes - e.g. the difference between day and night temperatures or if heat is generated in the box during operation and the box cools down after operation - pressure changes and condensation of water vapour occur in the sealed box.
In some cases, a vacuum may even be created, which can cause dust and moisture to enter.
Installing a pressure equalizing valve is a very simple way to provide ventilation while preventing vapor condensation and dust from entering the enclosure.
