END FED (EFHW) transformer MINI

Code: 100/1-4 100/1-6 Choose variant
New design
Not rated
€50
In stock - production after ordering In stock - production after ordering Choose variant
Variant

Transformer END FED version MINI, suitable for END FED (EFHW) antennas - end-fed half-wave antennas. Suitable for QRP.

Detailed information

Product detailed description

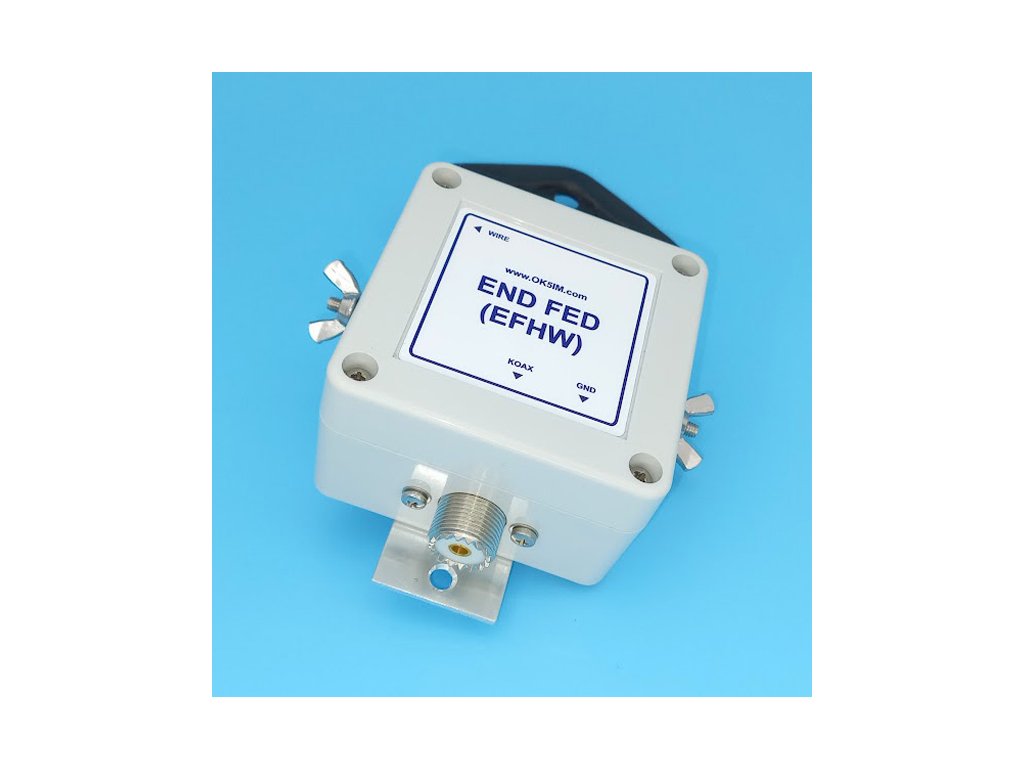

Transformer END FED (EFHW) version MINI

New version 2025

- more massive boxes, thicker walls
- brass bushings for lid screws
- Uniform box design for all models
- new power limits
- wider choice of mechanical designs
- choice of pressure valve design
- choice of Amphenol N connector
- MINI version also available in a clamp mount version
- overall precision design

Suitable for END FED (EFHW) antennas - end-fed half-wave antennas.

Suitable for QRP.

Specifications:
- Impedance transformation ratio 1:64 or 1:49 depending on variant.
- compensation capacitance 100 pF / 10 kV
- input impedance 50 Ohms
- Power load up to 50 W PEP max (SSB 50 W / CW 20 W / digi 10 W)

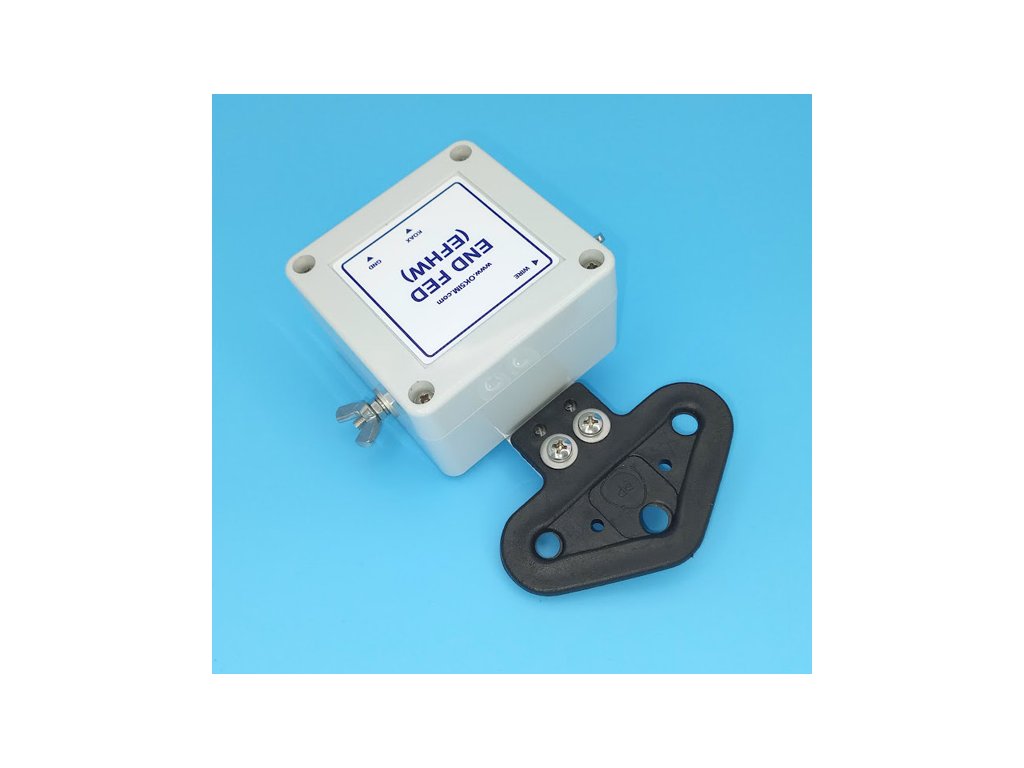

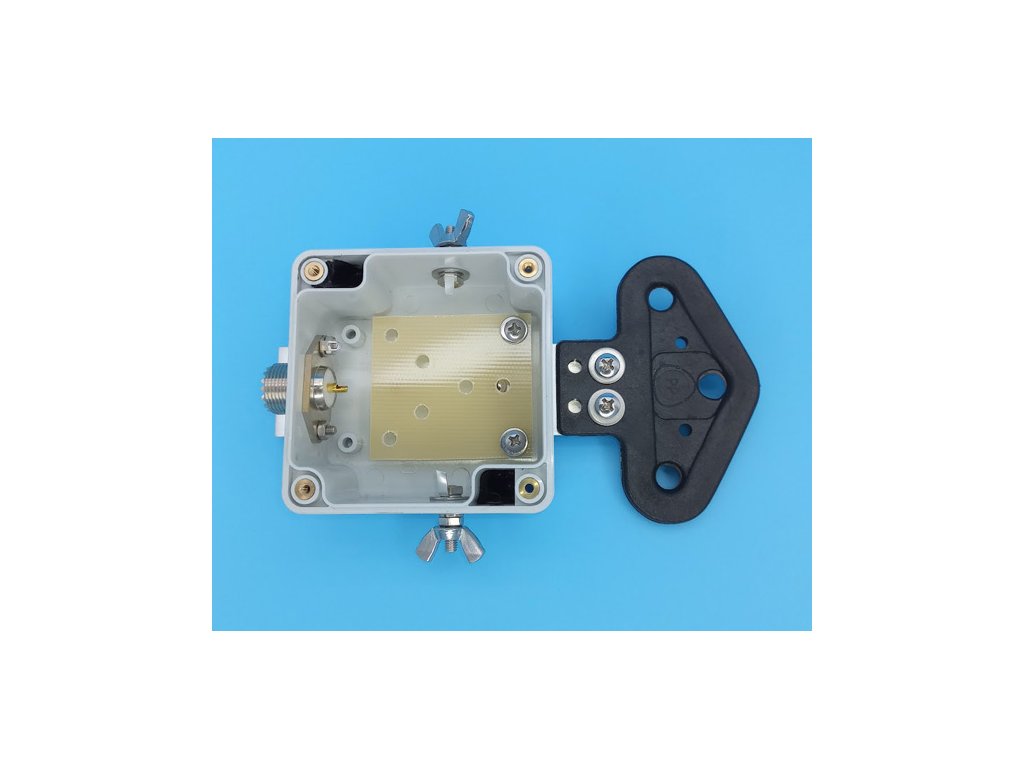

- mechanical design for suspension by rope
- PL (UHF) input connector
- antenna radiators are connected to M4 screws and secured with wing nut
- fasteners are stainless steel
- the box is IP-65 rated
- box size 75x75x45 mm
- weight 0,2 kg

The box can be supplemented with a pressure valve at an additional cost.
Function of the pressure valve - if the instrument box is exposed to temperature changes - e.g. the difference between day and night temperatures or if heat is generated in the box during operation and the box cools down after operation - pressure changes and condensation of water vapour occur in the sealed box.
In some cases, a vacuum may even be created, which can cause dust and moisture to enter.
Installing a pressure equalizing valve is a very simple way to provide ventilation while preventing vapor condensation and dust from entering the enclosure.
If you are interested in installing a pressure valve, add the valve offered in the Accessories category to your cart. The extra charge is the price of the valve.

Attach the coaxial cable to the balun so that it does not hang by its own weight on the connector.
