Unun QRO
Code: 115/1-6 115/1-9 Choose variantProduct detailed description

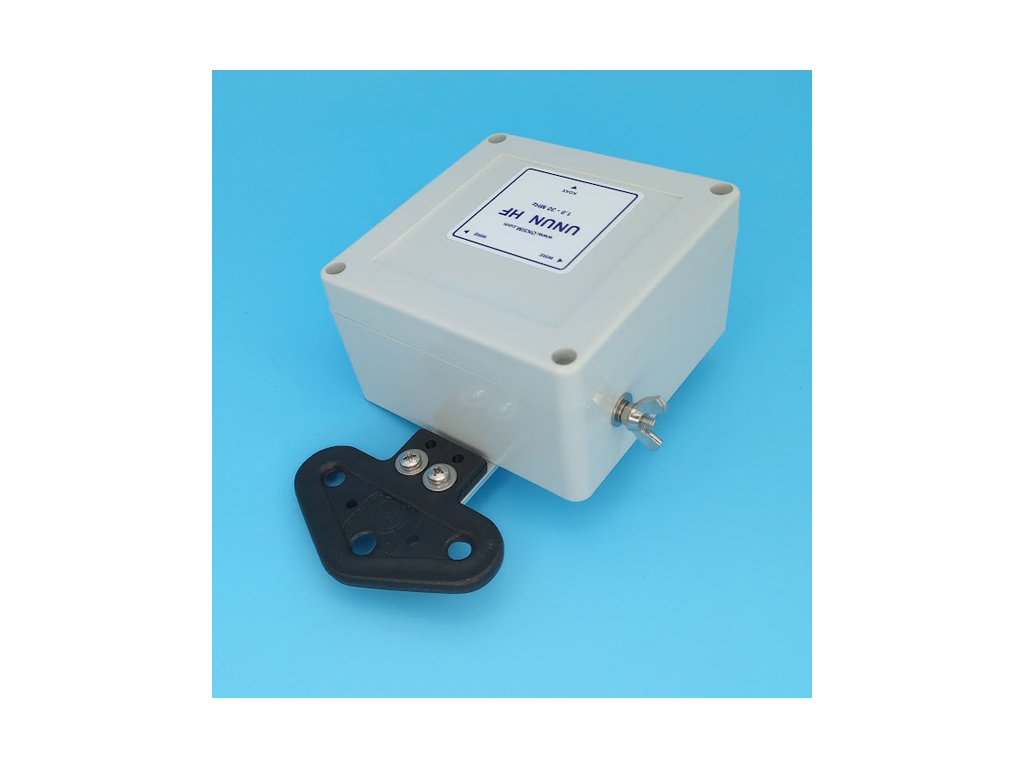

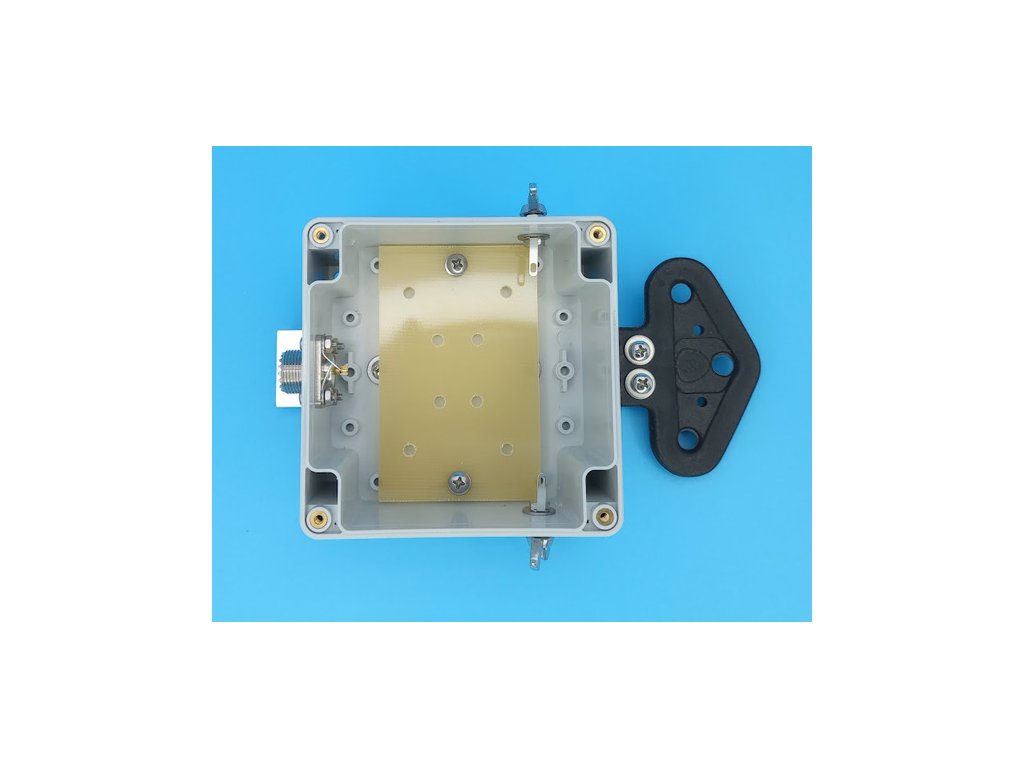

Unun version CLASSIC
Suitable for Windom (1:6) or LW (1:9) antennas
Specifications:
- impedance transformation ratio 1:6 or 1:9 depending on the selected variant.
- input impedance 50 Ohms
- power load up to 2000 W PEP
- mechanical design for suspension by rope
- PL (UHF) input connector
- the antenna radiators are connected to M4 screws and secured with a wing nut
- fasteners are stainless steel
- box dimensions 105x105x55 mm
- weight 0,4 kg
