Zeppelin 2x27m 300

Product detailed description

Dipole 2x27 m powered by 300 ohm double line.
Antenna suitable for bands 1,8-3,5-7-10 MHz.

It can be tuned on higher bands, but due to the length of the radiator the lobes will be already fragmented and the antenna will radiate upwards.

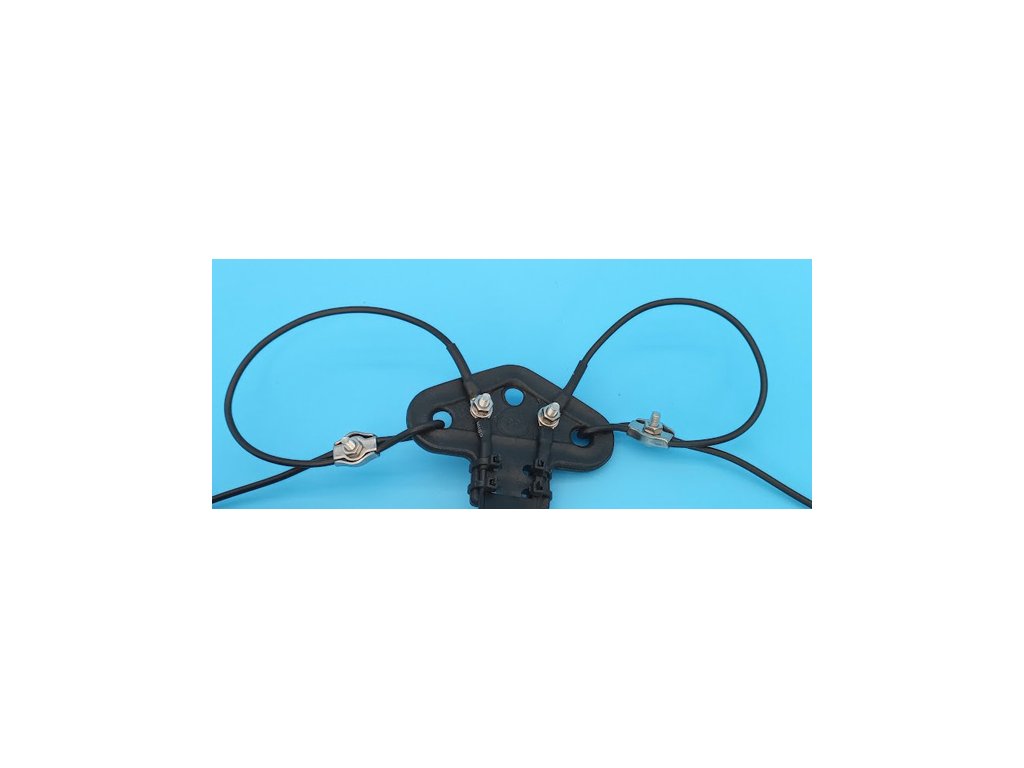

Mounting for hanging behind the center piece.
Hanging by the ends of the arms is recommended only for the CU-HS bow variant.

Specifications:
- bands 1.8-3.5-7-10 MHz
- arm length 2x27 m
- tuning by antenna tuner
- antenna wire according to variant
- 300 Ohm double line
- length of double line 10 m
- if a coaxial cable will be connected between the tuner and the double line, it is recommended to connect a 1:1 balun between the double line and the coax
- weight according to the selected cable
- attachment for hanging

On request it can be manufactured with any length of twin line.
Increase the length of the twin line - put the desired amount of increase metres of 450 Ohm twin line in the basket.

Example of connecting a 450 Ohm transmitting double line to a MINI LL balun - transition between double line and coaxial cable.
The balun is not included in the antenna, it is ordered separately.
